DATRON vacuum module clamping plates offer maximum clamping force and ease of use, achieved by the special DATRON vacuum distribution. Two vacuum plates specifically designed for DATRON neo are operated separately via connectors recessed in the worktable. Each plate is subdivided into 10 segments that - depending on component size - can be activated individually. To distribute the vacuum optimally below the workpiece, we have developed the DATRON VacuCard, a special cardboard, which serves as a sacrificial layer.

Description:

• For easy and secure clamping of sheet material
• Includes all accessories and consumables required for use of DATRON neo vacuum technology

Scope of delivery:

• 2x vacuum module clamping plate 500mm x 200mm (includes limit stop rings and mounting material)
• 1x vacuum pump
• 50x VacuCard 500mm x 200mm
• 50x VacuCard 500mm x 400mm
• 1x vacuum key
• 1x double flute end mill stepped with edge radius (for facing vacuum module clamping plates)

Description:

• To extend the possibilities with regard to multi-sided machining, round engraving
• Positioned on the left side of the machine table
• A module clamping plate with centring cone and a recessed grip enables fast and precise positioning on the machine table
• Easy to retrofit

Technical specifications:

• Center height: max. 55 mm (different when using the optional accessories)
• Plug&Play capability
• Mounting: Flat surface with D=106 mm nd centric fit (34h6)
• Drive: 200 Watt AC-Servo with toothed belt, multi-turn absolute encoder
• Modulo-360° operation
• Resolution: < 0,0001°
• Maximum speed: 60 1/min
• Dimensions (X x Y x Z): 109 mm x 244 mm x 145 mm

Scope of delivery:

• Rotary axis on module clamping plate
• Rotary axis control
• License 4^th axis for DATRON next control unit

Optional accessories:

The optional accessories for the rotary axis will be arranged according to your requirements

• Axis4 tailstock
• Axis4 three-jaw chuck
• Axis4 centric clamps

The pneumatic-clamping system moves with the click of a button to ensure quick job setup and changeover. According to your needs, you can use it on a T-slot plate or in stationary manner.

Description:

• T-nut plate for flexible clamping capability
• Short-stroke clamping element for quick and secure clamping of work pieces with one hand

Scope of delivery:

• 1x T-nut clamping plate right
• 1x T-nut clamping plate left
• 2x short stroke clamping element KSE-PH
• 1x dove tail milling tool

The fine dust generated when machining plastics or wood is removed efficiently with the optional ­DATRON neo dust extraction.

Description:

• Removes dust and small chips for a cleaner machining area and better quality parts
• Installation by the customer is possible
• Height adjustment within the control
• Automatic mode
• Not for use with coolant

Scope of delivery:

• Extraction system consisting of suction head with brush and lifting unit
• Vacuum with air filter
• Hoses

The DATRON neo Ionizing bar facilitates chip management during plastic machining. The ionization bar discharges the adhering chips inside the machine, allowing them to fall into the chip box through compressed air. This significantly reduces cleaning efforts throughout the process.

Scope of delivery:

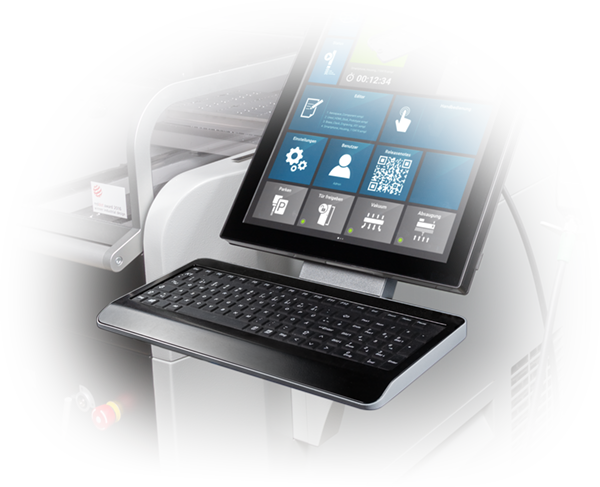

• 1x USB keyboard black (dust- and waterproof according to IP 68)
• 1x metal holder
• 4x screws for mounting on display holder
• cable tie

_{*Image similar}

The DATRON neo table helps the user to organize tools and measuring equipment within easy reach.

Description:

• Table for DATRON neo for storing tools and measuring equipment, light anodized.
• Vibration decoupled from the machine with rubber buffers
• Storage field for measuring equipment, channel for pen, storage places for tools with d=10.5mm stop ring
• Holder for adapter insertion tool for 6+8 mm collets 0068337D (not included in delivery)
• Holder for insertion tool stop ring 8 mm shank tools 0068180A (not included in delivery)
• Holder for the vacuum locks in the table and the corresponding 10 mm Allen key (not included in delivery)
• Hook for compressed air gun

Our DATRON neo Accessories to help you get started milling right away:

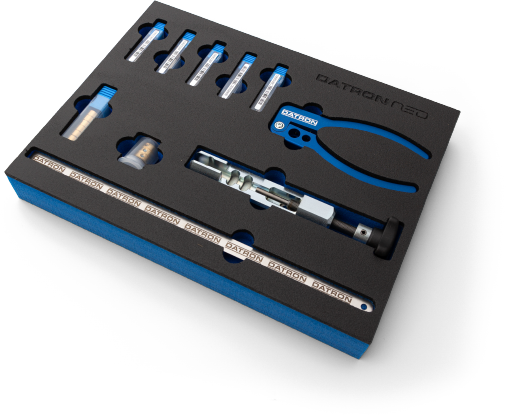

To use a wide variety of tools, you will also receive precisely manufactured adapters and stop rings. These allow the use of tools with different shank diameters. Also included are two ideal insertion tool.

Scope of delivery:

• 1x adapter insertion tool for 6mm and 8mm collets
• 1x insertion tool for tools with 8mm shaft diameter
• 1x adapter collets 3mm to 8mm diameter
• 1x adapter collets 1/8‘‘ to 8mm diameter
• 3x adapter collets 6mm to 8mm diameter
• 6x limit stop ring 8/12.5mm, brass
• 3x limit stop ring 8/18 mm, brass
• 1x steel
• Ruler 300 mm

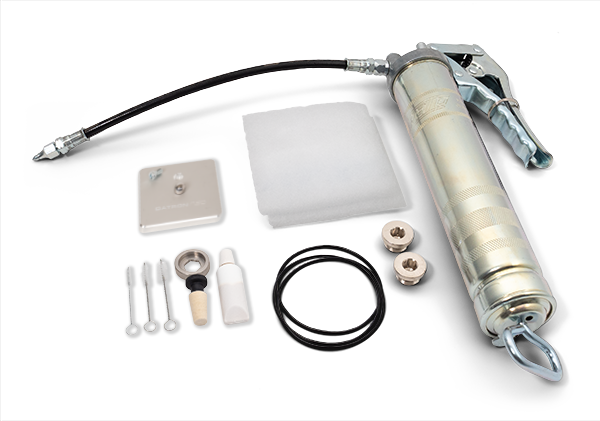

Secure it to a permanent machine availability. With Our DATRON neo maintenance kit we provide you the necessary products for a careful preventive maintenance.

• Cleaning agents and lubricants
• Filter and seal kit
• Grease Press
